Infusion Sets

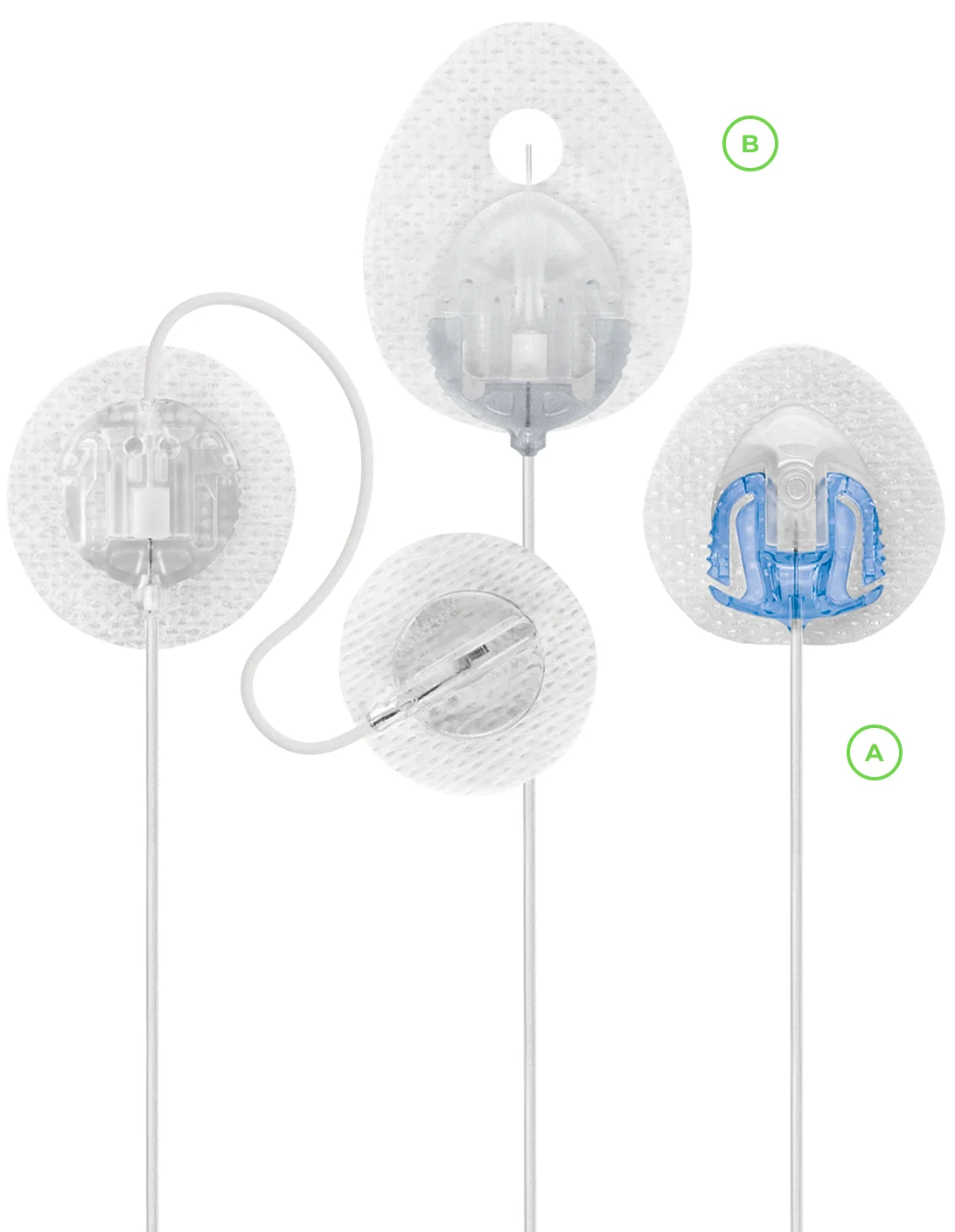

We offer a variety of choices to meet the unique needs of our pump users.






AutoSoft90 Infusion Set

AutoSoft 90

The AutoSoft™ 90 infusion set is our most popular all-in-one infusion set. The 90-degree soft cannula is pre-loaded in an automatic spring inserter to make one-handed insertions quick and easy, even in hard-to-reach areas. It is available in blue, pink, and grey.

  • Reversible connector makes reconnection simple and quick
  • Large grip areas on connector for easier disconnection
  • Visible inspection of the point of insertion
  • Available in Blue, Pink, and Grey

Product Details >>



AutoSoft 30 Infusion Set

AutoSoft 30

The AutoSoft™ 30 infusion set is an all-in-one angled infusion set with a disposable, integrated insertion device. The automatic inserter ensures a 30-degree angle with each insertion, and the reversible connector makes reconnection fast and easy.

  • Reversible connector makes reconnection simple and quick
  • Preferred by active individuals, lean adults, and children
  • Transparent window at insertion point
  • Flexible soft cannula

Product Details >>



VariSoft Infusion Set

VariSoft

The VariSoft™ infusion set is easy to insert, has a discreet, low profile, and features convenient at-site disconnection. It allows users to choose their most comfortable insertion angle (20 to 45 degrees), so it’s preferred by patients who are lean and active.

  • Visible and audible connection and disconnection confirmation
  • Transparent window at insertion point
  • Built-in adhesive is strong yet hypoallergenic
  • Flexible soft cannula can be manually inserted at a 25 to 45 degree angle

Product Details >>



TruSteel Infusion Set

TruSteel

The TruSteel™ infusion set features a very fine, 29-gauge, 90-degree stainless steel needle for those who prefer the reliability of steel sets but don’t want to compromise on comfort. With its additional adhesive pad, the TruSteel infusion set provides extra security against needle dislodging, which makes it a good choice for those who have reactions to plastic cannulas and those with a history of bent cannulas.


Product Details >>






Find your set

Tandem Diabetes Care™ infusion sets are made by Unomedical, the same company that manufactures the infusion sets sold by other tubed insulin pump companies. In most cases, even though products are labeled under different names by the pump companies, they have identical infusion sites. Below is a list of commonly used infusion sets and the equivalent Tandem brand names. Note that identical sites often have different reservoir connectors and are not compatible across pump manufacturers.

Current Infusion Set (made by Unomedical) Brand Name Equivalent
Animas Inset II AutoSoft 90
Animas Inset 30 AutoSoft 30
Animas comfort and comfort short VariSoft
Animas contact detach TruSteel
Medtronic MiniMed Mio AutoSoft 90
Medtronic MiniMed Silhouette (manual insertion) VariSoft
Medtronic MiniMed Sure-T TruSteel











Infusion Set Details

Finding the right infusion set is an important part of successful insulin pump therapy, which is why we offer many choices in cannula materials, tubing lengths, insertion angles and insertion techniques.

AutoSoft™ 90 Infusion Set

Color Cannula Tubing Part No.
Grey 6mm 60 cm 1000165
110 cm 1000186
9mm 60 cm 1000187
100 cm 1000188
Pink 6mm 60 cm 1000189
9mm 60 cm 1000190
Blue 6mm 60 cm 1000192
9mm 60 cm 1000193



AutoSoft™ 30 Infusion Set

Color Cannula Tubing Part No.
Grey 13mm 60 cm 1000198
110 cm 1000199



TruSteel™ Infusion Set

Color Cannula Tubing Part No.
Clear 6mm 60 cm 1000208
80 cm 1000209
8mm 60 cm 1000210
80 cm 1000211



VariSoft™ Infusion Set

Color Cannula Tubing Part No.
Clear 13mm 60 cm
1000203
80 cm 1000204
110 cm 1000205
17mm 60 cm 1000206
80 cm 1000207
